OPERATING LIMITS Fluid temperature up to: +35℃ Maximum […]
OPERATING LIMITS
Fluid temperature up to: +35℃
Maximum ambient temperature: +40℃
Insulation class: B and F
Protection class: IPX4

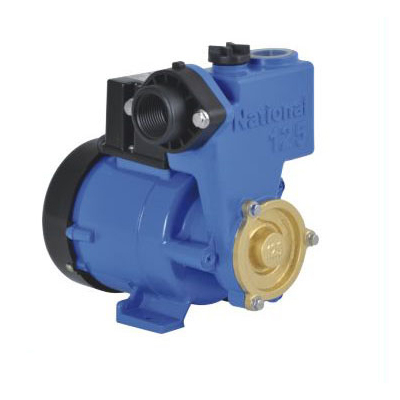

PUMP
Peripheral
Pump Body: Cast Iron
Impeller: Brass
Mechanical Seal: Carbon/Ceramic/Stainless Steel
MOTOR
Single Phase/Heavy Duty/Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel/Stainless Steel/45#be electroplated
Cooling: External ventilation
PUMP INSTALLATION AND APPLICATIONS
These pumps are suitable for handling clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components. Reliable, economical and simple to use, they are suitable for domestic applications and the automatic distribution of water from surgr tanks, watering gardens and for boosting insufficient mains water pressure. These pumps should be installed in a covered area, protected against the weather.
